Sewage Sludge

Digester Sludge

Inderst. W.W Sludge

etc. Sludge

Processing capacity Capa 50 ~ 200 ton/day

input function ratio Input 50%~85%

Emission moisture content Output 10% or less

Specification of molded article 8.0mm or less

The dry sludge and additive storage tank are steel structures, and the lower part is dry sludge and A quantitative discharge device is constructed considering the properties of the additive and a large capacity at 50 tons It can be designed and manufactured in various storage capacities up to 200 tons.

When using the dryer, the operation method is to control the return volume in the case of the recovery mixed input operation method Provides an accurate mixing ratio by.

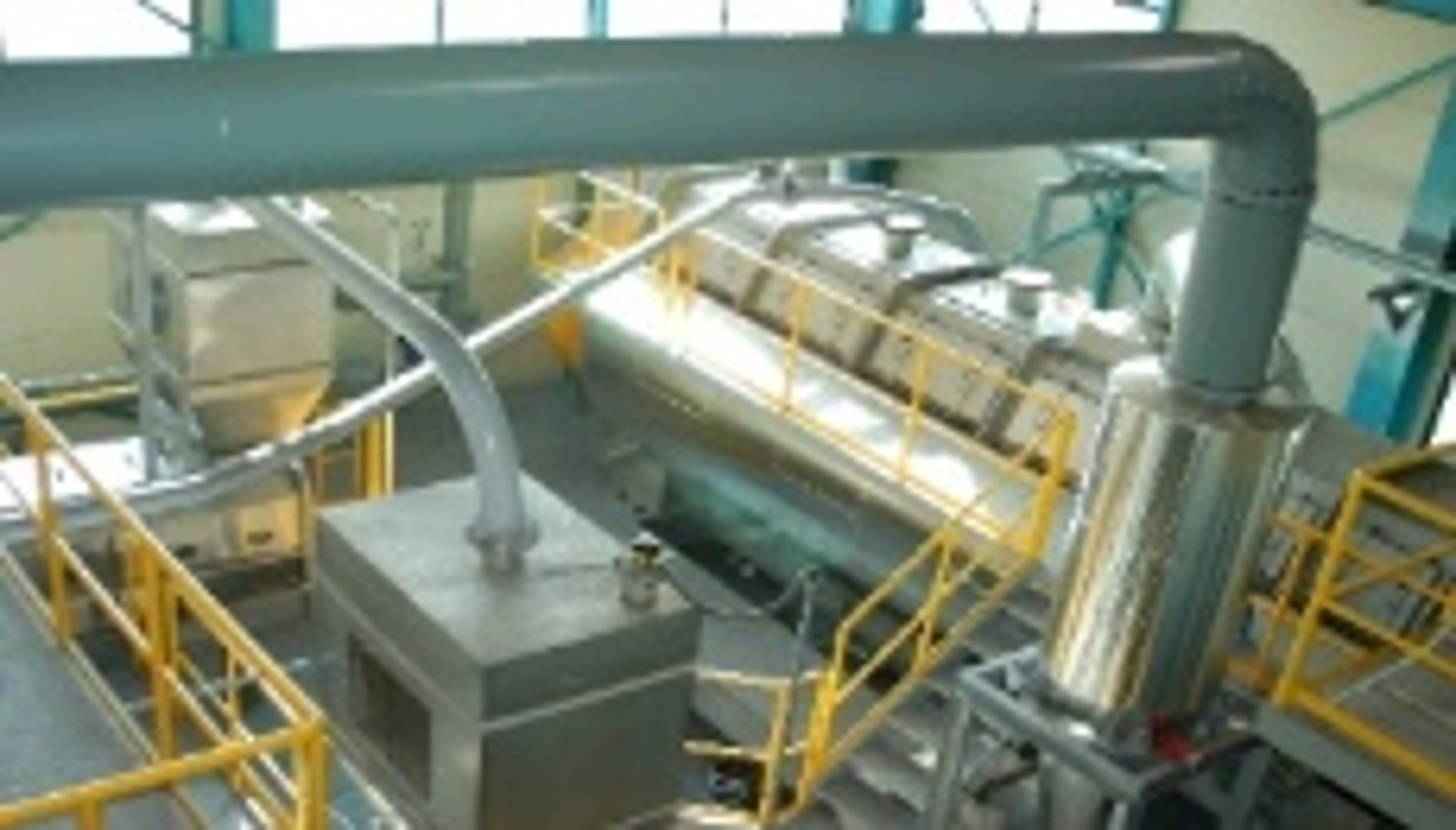

The disk dryer is an indirect heating steam dryer with a maximum input of 5 tons/Hr It is possible and the moisture content of the dry product is 10% or less.

Additives can be mixed quantitatively according to the ratio to produce optimal fuel bombs Provide facilities that meet the requirements.

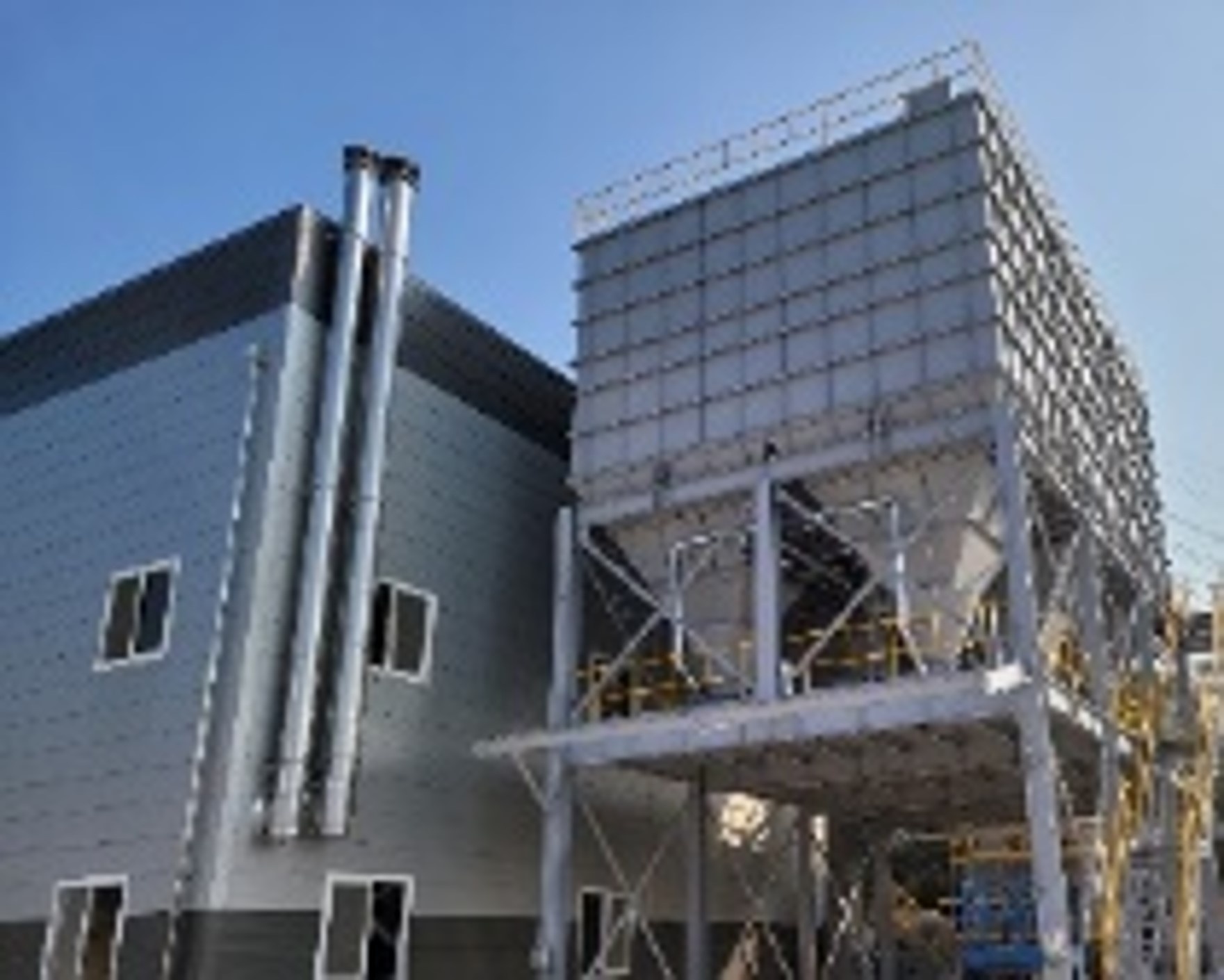

Dry sludge storage tank and additive storage tank can be sealed and transported quantitatively Structural design and corrosion resistant material composed of conveyor and sufficient for static and dynamic loads Provides a stable reservoir applied.

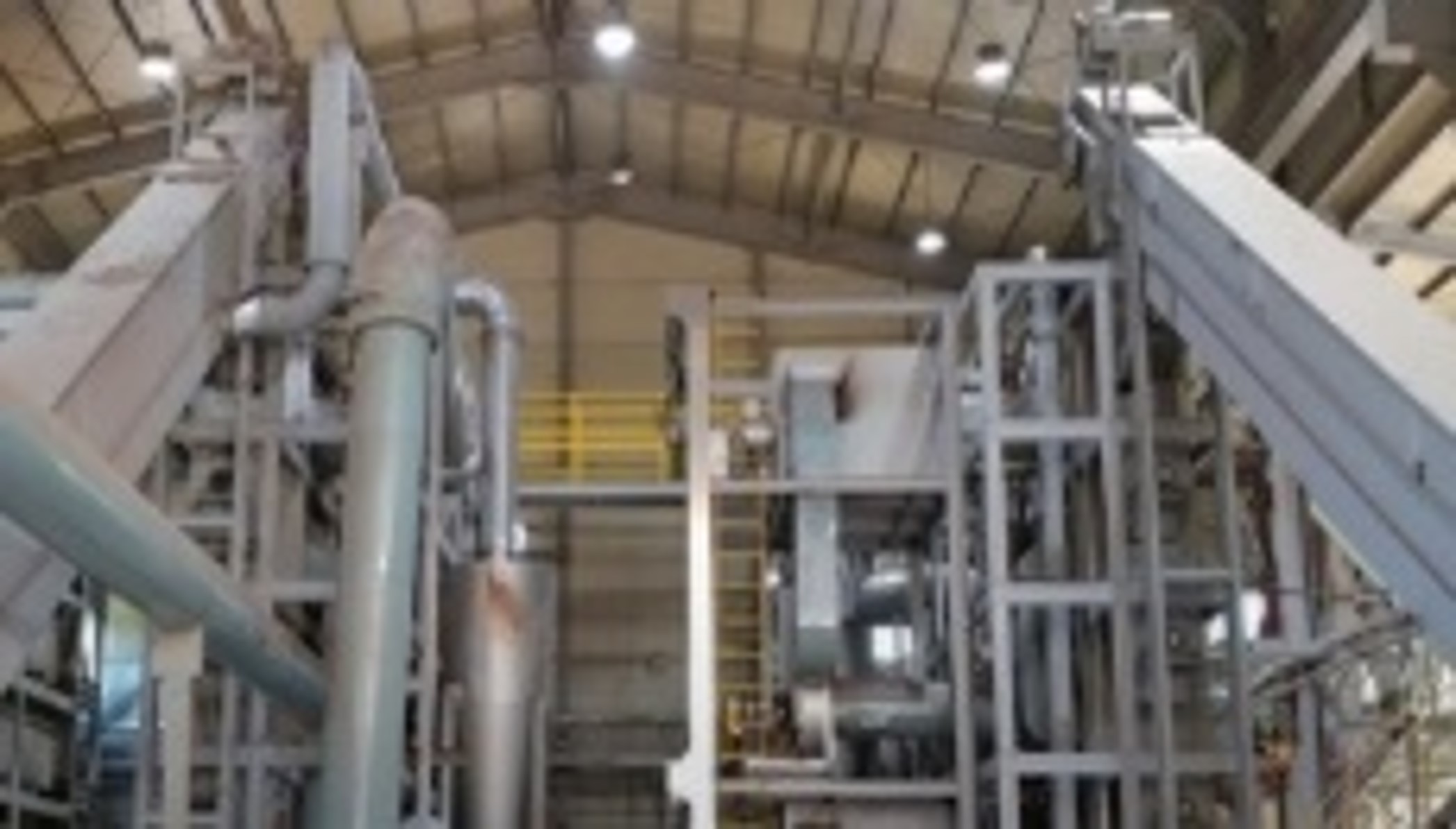

The transfer of dry sludge is a pneumatic type transfer device, and the transfer of dry sludge and additives Provide facilities considering conditions and transport distances.

The material of each device is corrosion resistance considering the corrosion resistance and abrasion properties of dry sludge Designed from abrasion-resistant materials and based on a lot of experience and field experience Provide facilities to respond to field situations.

The dryer is designed from corrosion-resistant and abrasion-resistant materials and thermal reaction of sludge and a product designed and manufactured with an internal structure that takes into account changes Provides facilities with high heat transfer efficiency.

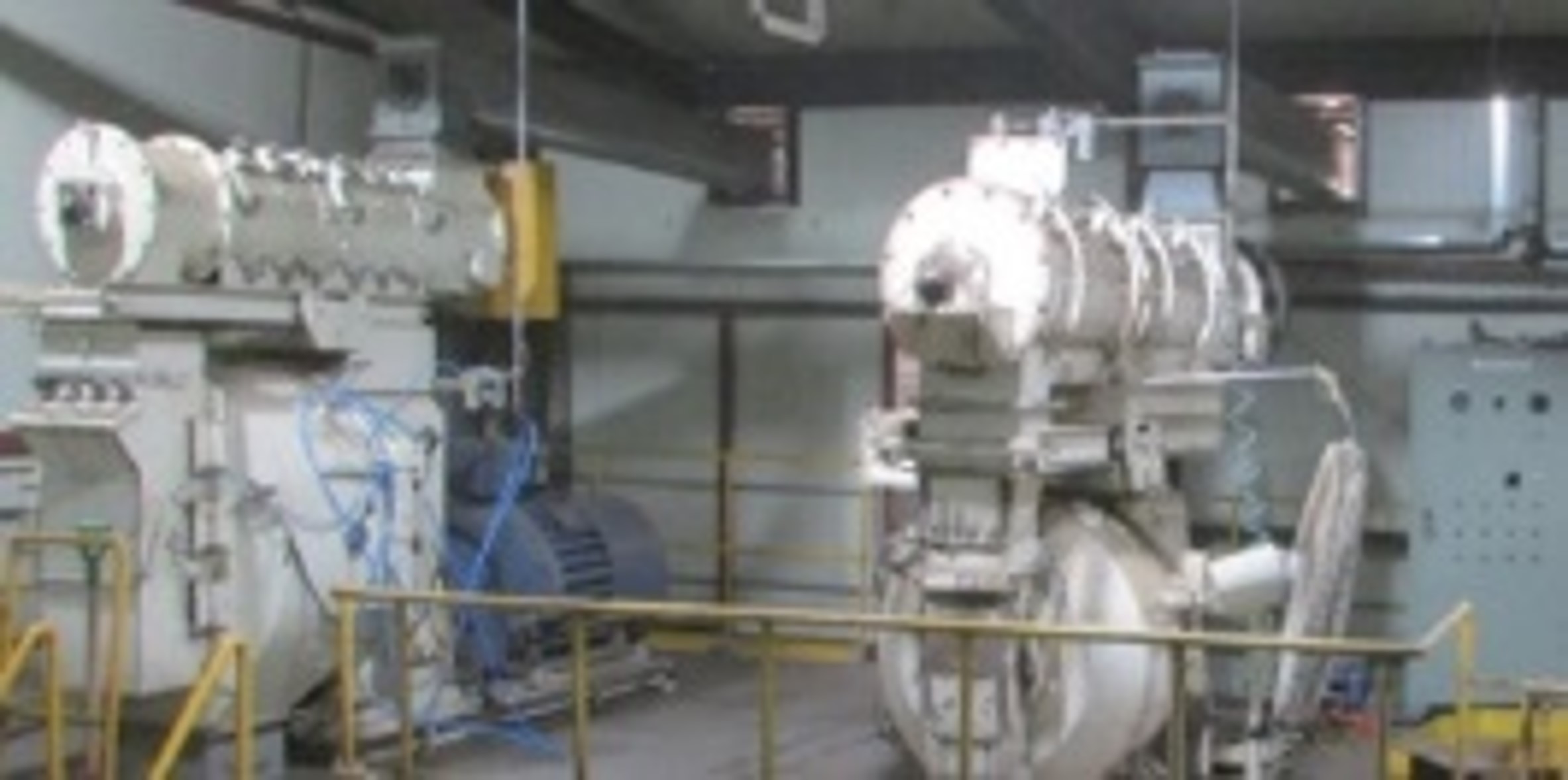

The molding machine minimizes dust and immobilization by considering the characteristics of sludge and additives Provide facilities with sufficient strength.

The high concentration odor that has been condensed in the gas evaporated in the dryer is sealed It is collected from the state and connected to the combustion chamber of the incinerator and deodorized combustion When using the waste heat boiler, the heat source recovered after deodorization combustion is the heat source supplied by the dryer It's used.

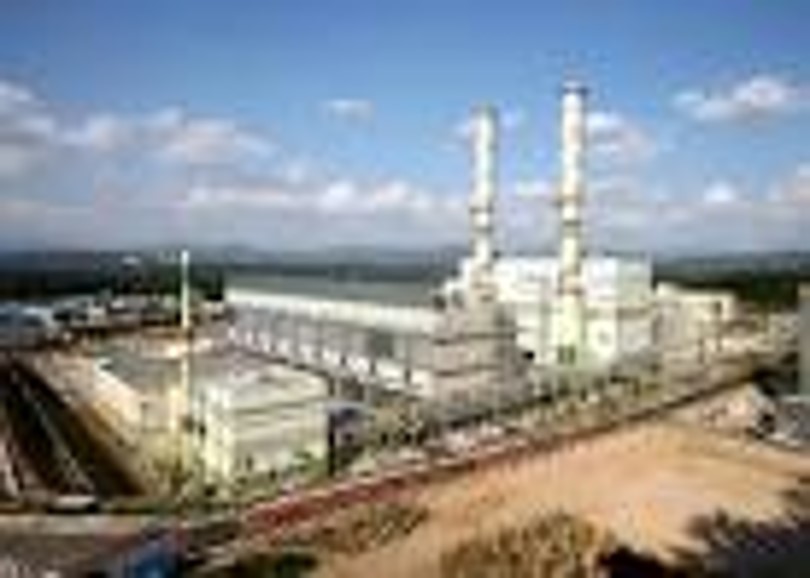

After molding, the odor characteristic of the product is produced by a high-temperature heat treatment facility It provides facilities that can separate and produce odorless fuel bombs. After heat treatment, the fuel coal is supplied to the thermal power plant and the cogeneration plant as an energy source It's used.
