Food Waste

Processing capacity Capa 50~300 ton/day

input function ratio Input 80%~85%

discharge moisture content Output Dry less than 10%

The input tank capacity can be designed and manufactured in various storage capacities ranging from 50 tons of small capacity to 300 tons of large capacity.

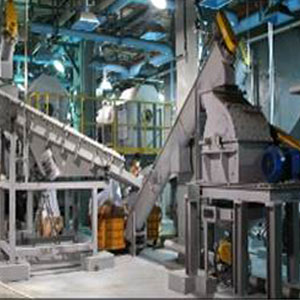

The automatic sorting/cracker ensures efficiency of a maximum throughput of 18 tons/Hr and a complication screening rate of 95% or more.

The food dehydrator is a low-speed type and has a dehydration performance effect with a discharge cake moisture content of 75% or less.

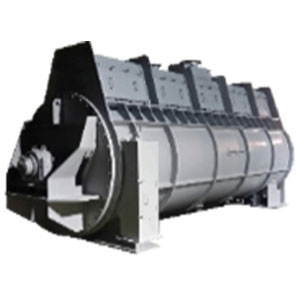

The disk dryer is an indirect heating steam dryer, which can input up to 5 tons/Hr and has a moisture content of 10% or less of the dry product.

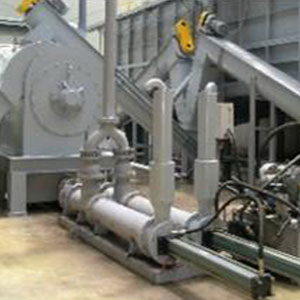

The automatic sorting shredder performs complete foreign matter screening and organic matter crushing at the same time, has no residual organic matter in the selected foreign matter, is transported in a sealed state by a piston pump to prevent odor spread and is designed with corrosion-resistant and abrasion-resistant materials, and provides facilities to respond to unspecified foreign substances based on their many achievements and field experience.

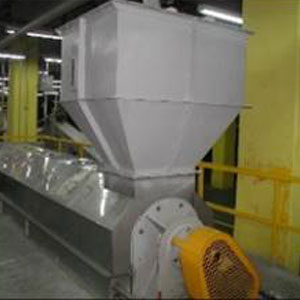

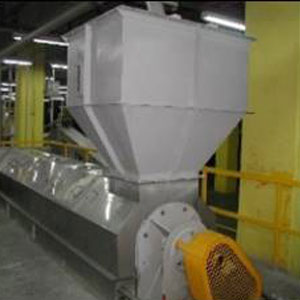

The low-speed dehydrator is configured to respond to changes in the winter and summer seasons of food, provides homogeneity of dehydration cake moisture content and desorption filtrate concentration through continuous research and development, and is designed with materials with sufficient strength calculation and excellent pressure and wear resistance to high pressure.

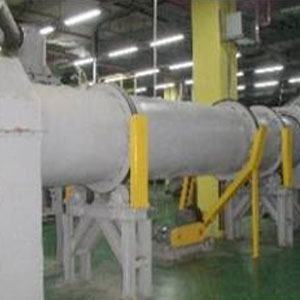

Indirect heating, high efficiency steam dryer is sufficient for evaporation Steam discharges to the most efficient location with heat transfer area A nozzle is installed and a separate fine dust emission reduction device is used It's attached, and inside, there's a transportation and stirring paddle It was deployed efficiently. The exterior is made of excellent insulation When it's closed, the outlet controls the emissions according to the input An adjustment device was provided.

High concentration through condensation in gas evaporated from the dryer The odor is collected in a sealed state and deodorized combustion furnace connected, treated, and smeared The heat source uses a waste heat boiler to supply the dryer will be used .

Food Waste

Processing capacity Capa. 50~300 ton/day

input moisture content Input 80%~85%

Emission moisture content Output 75%이하

Input tank capacity is 50 tons small to high capacity Designed and manufactured in a variety of storage capacities up to 300 tons It is possible.

Automatic sorting/cracker has a maximum throughput of 18 tons/Hr, Ensure efficiency of 95% or more of the complication screening rate.

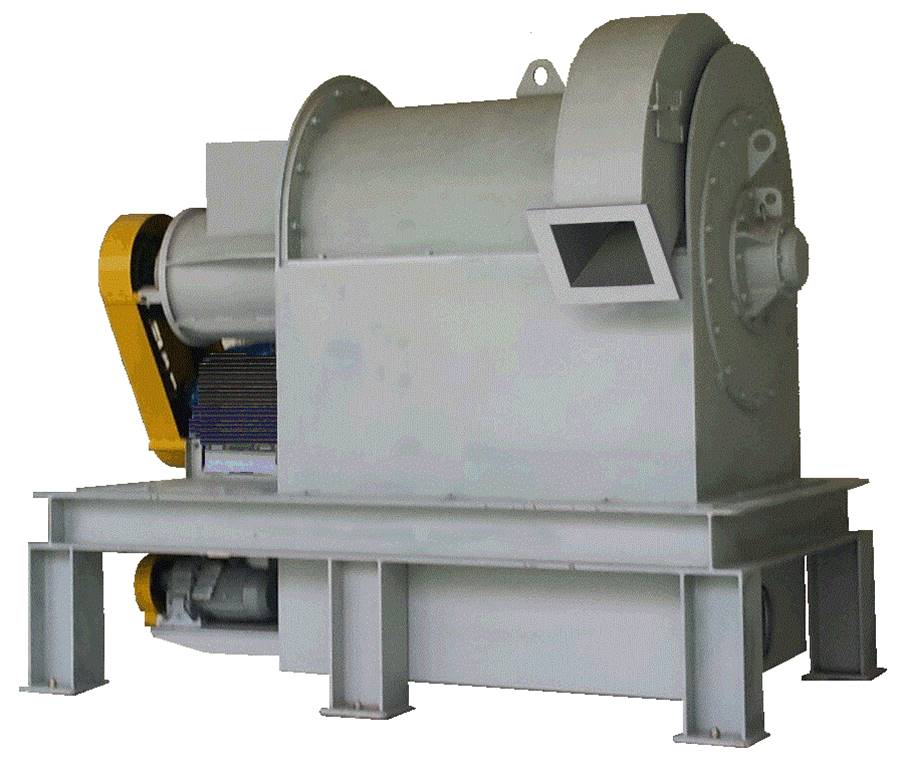

The secondary microcrushing sorting machine is capable of operating in a gasless state It is structured and offers a performance of 5mm or less.

The secondary microcrushing sorting machine has a maximum throughput of 5 tons, 10 tons, 15 tons/Hr is provided and the fine complication screening rate is 95% Ensure greater efficiency.

Space for secondary microcrushing sorting machines with compact facilities Great use.

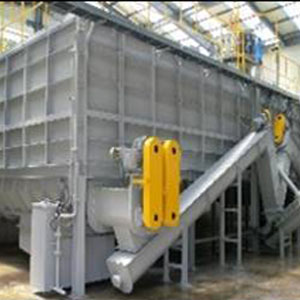

High-capacity storage tanks can be sealed to the input door and the lower part It consists of a conveyor, and at the bottom, there are naturally discharged perforated facilities Freeze protection is provided The discharge device is capable of discharging quantitatively and under static and dynamic loads Reliable with sufficient structural design and corrosion-resistant material Provides storage tanks.

The primary automatic sorting shredder provides complete foreign object sorting and We simultaneously pulverize organic matter, and the selected foreign substances will be subjected to There's no residual organic material and it's crushed The food is transported in a sealed state by a piston pump It prevents the spread of odors and is made of corrosion-resistant and abrasion-resistant materials It's designed and has a lot of performance Based on field experience, responding to unspecified foreign objects Provide facilities.

Secondary pulverization and sorter can be used for the properties of anaerobic digester It is necessary to carry out pulverization according to the result of the first round of screening and to prevent separation Digestive efficiency by re-segregating fine foreign matter Provides homogeneous raw materials for augmentation. especially Smoothly under conditions that do not specify the fluidity of raw materials It is a working structure that works.

When secondary fine grinding and sorting machine is secondary sorting and crushing Screening even if the fluidity conditions of the required food are not met And it can be crushed, so you don't need a singer Forcing light foreign substances at the same time as pulverizing organic matter Performs the performance of ejecting.

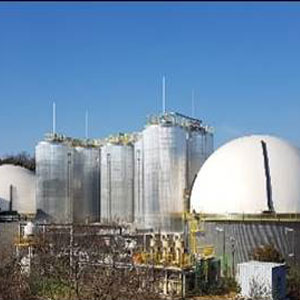

This process requires no hydrothermal treatment for anaerobic digestion Compact fire extinguishing tank can be configured Medium storage tank and fire extinguishing tank due to high micro-selection efficiency Increase operation efficiency and dredge duration for long-term use Suitable for extending roles.
