Sewage Sludge

Digester Sludge

Inderst. W.W Sludge

Sludge etc

Processing capacity Capa 50~300 ton/day

input function ratio Input 80%~85%

Emission moisture content Output Dry less than 10%

The storage tank and the carrying tank are R.C. and steel structures, and the lower part is the characteristics of sludge A considered quantitative discharge device is configured and from 50 tons to 300 tons of mass capacity It can be designed and manufactured with various storage capacities.

The transfer of sludge in the form of a piston is sufficient for high-pressure discharge pressure by hydraulic driving Ensure transfer efficiency.

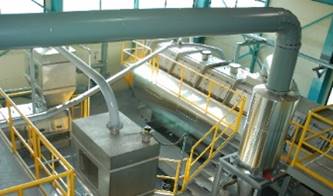

The disk dryer is an indirectly heated steam dryer, and the input amount can be up to 5 tons/Hr The moisture content of the dry product is 10% or less.

In the case of the recovery and mixing operation method of the dryer, it is accurate by controlling the conveyance amount Provides a mixing ratio.

The transfer of sludge is a piston type volumetric transfer device and is operated by hydraulic drive The operation makes it easy to control the amount of transportation and the facility in consideration of the sludge condition and transport distance It will be selected and provided.

The material of each device is corrosion resistance considering the corrosion and abrasion properties of sludge Designed from abrasion-resistant materials and based on a lot of experience and field experience Provide facilities to respond to field situations.

In the case of the recovery and mixing operation method of the dryer, it is accurate by controlling the conveyance amount Provides a mixing ratio.

The dryer is designed from corrosion-resistant and abrasion-resistant materials and thermal reaction of sludge and a product designed and manufactured with an internal structure that takes into account changes Provides facilities with high heat transfer efficiency.

Direct input and recovery of dryer operation method according to sludge type and dehydration condition It is divided into mixed types to provide efficient operation.

The high concentration odor that has been condensed in the gas evaporated in the dryer is sealed It is collected from the state and connected to the combustion chamber of the incinerator and deodorized combustion When using the waste heat boiler, the heat source recovered after deodorization combustion is the heat source supplied by the dryer It's used.
